UNIKS M37 Multimetro tester digital in autorange e TRMS 10A 600V AC/DC IP67

Name: UNIKS M37 Multimetro tester digital in autorange e TRMS 10A 600V AC/DC IP67
Brand: UNIKS
SKU: M37
Price: 170.82 EUR
Availability: InStock

En stock

SKU: M37

Êtes-vous un revendeur ? Inscrivez-vous ici

Description

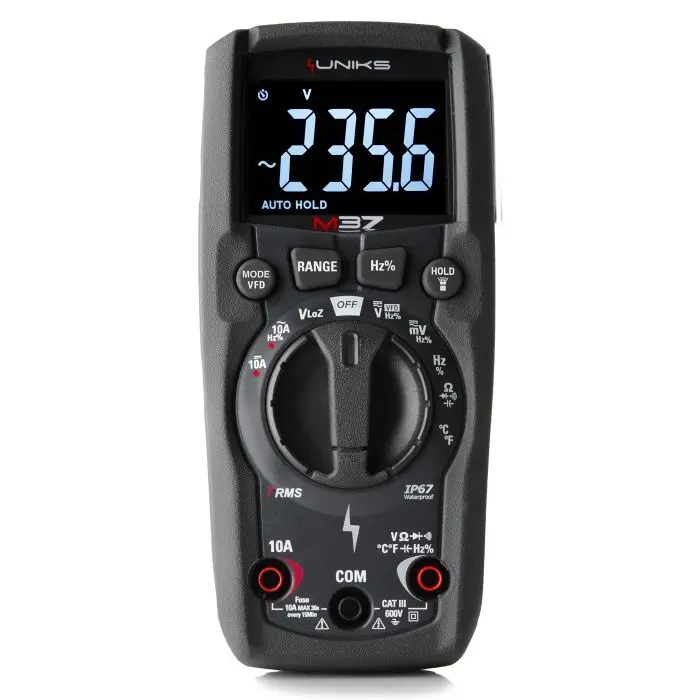

M37 represents the UNIKS range of digital multimeters of small dimensions but with high level measurement and construction characteristics. The 10A Voltage and Current measurements are in TRMS (True RMS) furthermore the voltage measurement can be performed with the addition of a VFD filter to eliminate higher order harmonic components for more reliable readings in variable speed motors or below the inverters.

The LowZ function, thanks to the low impedance input, cancels the reading of the phantom voltages by providing the correct value, i.e. zero.

M37 has a voltage range that varies from a scale in mV up to a maximum of 600V AC/DC in true effective value (TRMS) and in Autorange. Overvoltage category is III 600 V. The current measurement can be selected in the 10A, uA and mA AC/DC scales Measurement, Capacitance, Diode test, Resistance, Continuity and Temperature with type K probes.

M37 from Uniks is waterproof with an IP67 protection rating. It not only makes it waterproof but also resistant to dust and moisture.

Main functions:

TRMS
Auto Range
Black LCD display
Display Points 6000
CAT III 600V
Data Hold
V LoZ
VFD filter
Integrated flashlight
3m drop test
IP67
Auto Power Off
Low battery indicator
Backlight

Fiche de données

RANGE	PRECISION
AC voltage	60mV – 600V	1.2% ± 8d
DC voltage	60mV – 600V	0.5% ± 8d
AC current	10A uA, mA (400uA – 400mA)	1.5% ± 8d
DC current	10A uA, mA (400uA – 400mA)	1.5% ± 8d
Resistence	60MΩ	1.5% ± 5d
Frequency	10Hz – 10KHz	1.2% ± 5d
Temperature	-20°C – 1000°C	1.5% ±5°C
Capacity	60.00mF	2.5% ± 5d
Try Diodes
Duty Cycle
